436L

*Type Austenite

Characteristics

    Excellent in corrosion resistance, drawability and weldability due to the addition of Mo, Ti and Nb.

Chemical compositions and physical properties
Designations Chemical compositions (%) Mechanical properties Physical properties
 JIS   POSCO   C   Cr   Ni   Mo   Orthers   Yield
 Strength
 N/mm²  		 Tensile
 Strength
 N/mm²  		 Elongate

 %  		 Hadness

 Hv  		 Specific
 Heat
 J/gºC  		 Specific
 Gravity  		 Thermal
 Expansion
 Coefficient
 W/m-ºC  		 Thermal
 Conductivity
 W/m-ºC
 436L   436L   ≤0.025   16.0~19.0   -   0.75~1.5   Ti, Nb, Zr
 8x(C%+N%~0.8) 		  ≥245   ≥410   ≥20   ≤230   0.46   7.7   9.3   23.9

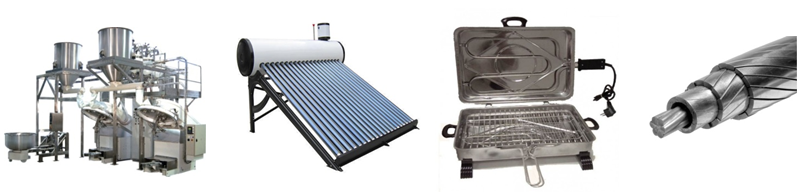

Applications

    - Automatic exhaust system.
    - Hot water system.
    - Household electrical appliances.
