430RE

*Type Austenite

Characteristics

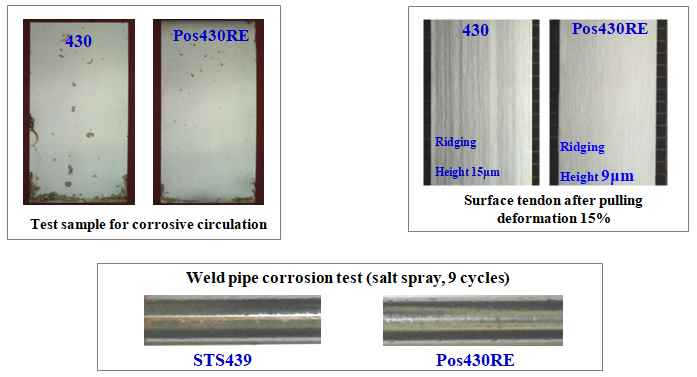

    Excellent forming, welding and corrosion resistance due to low C and N components and addition of Ti; Very good anti-tendon treatment saves polishing time.

Chemical compositions and physical properties
Designations Chemical compositions (%) Mechanical properties Physical properties
 JIS   POSCO   C   Cr   Ni   Mo   Orthers   Yield
 Strength
 N/mm²  		 Tensile
 Strength
 N/mm²  		 Elongate

 %  		 Hadness

 Hv  		 Specific
 Heat
 J/gºC  		 Specific
 Gravity  		 Thermal
 Expansion
 Coefficient
 W/m-ºC  		 Thermal
 Conductivity
 W/m-ºC
 430RE   430RE   ≤0.02   16.2   ≤0.02   0.15~0.20   -   ≥320   ≥470   ≥32   ≤165   0.46   7.75   10.0   24.9

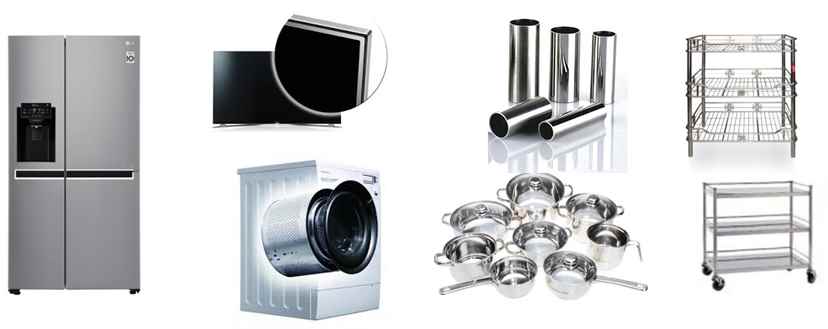

Applications

    - Household products, ...
    - Decorative pipe.
